Physics Lab Experimental Setups
Showing 1–12 of 16 results
Amtech India Manufacture,Supply and Export Wide Range OF Scientific Laboratory Instruments For Physics Lab used in Schools and Colleges . We Cover an Assorted Range of Instruments for Mechanics Lab, Sound, OPtics,Thermodynamics,Motion,ELectronics, Electrical Lab etc. These Precision Laboratory Instruments are widely used in performing Various Physics Lab Experiments .
For Further Details visit us at www.amtechindia.in or write to us at info@amtechindia.in

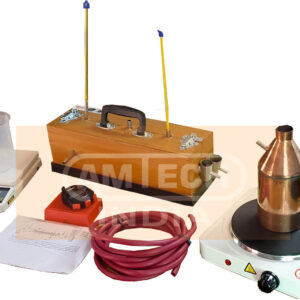

Coeffecient of thermal conductivity of Copper by Searl’s Apparatus
Amtech India offers Experimental Setup to determine the Coeffecient of thermal conductivity of Copper by Searl's thermal conductivity apparatus . The apparatus includes Searle’s Thermal Conductivity Apparatus, four Hg thermometers, Steam Boiler, Measuring Cylinder, Constant Water Level Tank, Pinch cork, Stop watch , Rubber tube and Hot Plate complete with detailed instruction manual.
Dynamic Track / Newtons Second Law Demonstration
Amtech India's Dynamic Track kit provides associate degree economical and convincing format for demonstration and project work giving repeatable results. Students will carry investigations into K.E., motion on associate degree machine, momentum, force on a mass, elastic collisions, transfer of energy, straightforward periodic movement and lots of a lot of.
e/m of an electron by Thomson Method experiment
Amtech India offers experimental setup for determining the value of specific charge e/m of an electron by Thomson method. The set up constitutes a power supply fitted with a Digital Voltmeter to measure the deflection voltage(0-200 volts DC).Potentiometers are mounted on the front panel for focus control, intensity Control & X, Y shift controls. Eight-pin octal base mounted is provided on the front panel to connect the CRT plug of the Cathode Ray tube (CRT) mounted on the wooden stand. The Equipment is also offered with a pair of Bar magnets, Compass and a Wooden stand having two arms, fitted with scales to measure the distance of the poles of the magnets and also accommodate cathode ray tube in its middle. Another wooden stand is also provided to place the compass box in the center.
Focal Length of Combination of two Convex lenses using Nodal slide assembly
Amtech India offers Experimental Setup to determine the combination of two convex lenses using nodal slide assembly and to verify the formula. The above setup consists of an optical bench 1.5 meter , two Convex lens , Nodal slide assembly .
Four Probe Apparatus
Experimental Setup to determine resistivity of semiconductors by four probe method at different Temperatures & Determination of Band gap

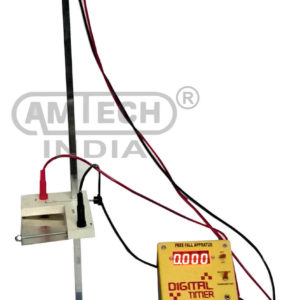

G by Free Fall Apparatus
Amtech India's offers above apparatus for determining the acceleration due to gravity ''g'' by activity the time of fall of a steel spherical ball through a noted distance. The Above equipment measures the time it takes for a ball to fall a particular distance employing a digital timer.

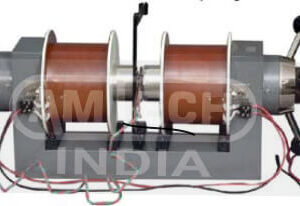

Halls Effect Experimental Setup
Amtech India offers Halls Effect Experimental setup for use in Physics Laboratories. The set up consists of the following : > High Quality Electromagnet of 7.5 Kg > Power supply for electromagnet 0-100V/4 Amp with meter mounted on the front … Continued

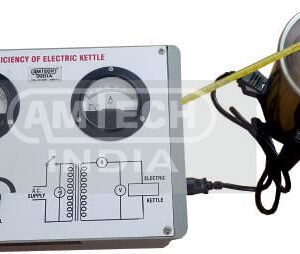

Heating effeciency of Electric kettle experiment
Amtech India offers Heating efficiency of Electric Kettle Configuration which includes following adhering to the device .
Helmholtz Resonator
Amtech India offers Helmholtz resonator experimental setup to find the relation between the frequency and the resonating volume using a narrow necked resonator and to determine the unknown frequency of the tuning fork as is well as the neck correction. The apparatus consists of a a Cast Iron retort stand, Separating funnel 500 ml, Beaker , Measuring cylinder, set of tuning forks and a striking pad , offered with instruction manual .
Linear Air Track
An Air Track is a scientific device accustomed to study motion in very low friction surroundings. Its name comes type its structure: air is tense through a hollow track with fine holes right along the track that permits specially fitted
air track cars to glide comparatively friction-free. Air tracks are typically sq. in cross-sectional. Carts match nearly onto the highest of the track ar accustomed study Linear motion in low friction environments.

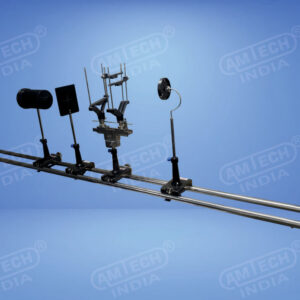

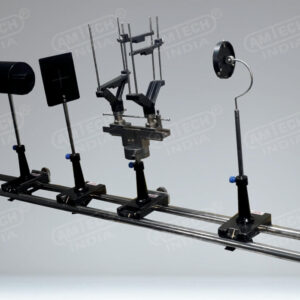

Nodal Slide assembly
Ammtech India offers Nodal Slide assembly for use in physics lab Experiments. Th above assembly consists of
1) Nodal upright Consisting of a combination of Single & double lens holder on a mounting rotating along the vertical axis. The combination lens holders are adjustable in height and the single & twin Lens holders can either be moved together by rack & pinion or relative to each other by sliding. These motions are read by individual pointer on a mm scale. The whole mount can rotate along its vertical axis and the degree of rotation read on a circular scale with 3” steel C.P. stem.
2) MIRRORs: Plain, inclinable with 3” steel C.P. stand.
3) OPTICAL SLIT: with fine machined crosss-lit, one surface white & the other optical black, with 3” steel C.P. stem.
4) LAMP HOUSE: An electric bulb is encased in a metal case with cord & pin, works on 220 Volt.
Series Parallel Connection Experiment
Amtech India Offers Series & Parallel Connection Experimental Apparatus to demonstrate how electricity flows in a circuit in series & Parallel respectively. In Consists of two circuit connects having LED bulbs in Series and Parallel mounted on Box provided with an inbuilt power supply of 9 volts. The power source is applied to each circuit to study the above experiment.
